hello team has any one make the jig for the wheel building?can any one upload photos?thanks

email (option): lagonas21@windowslive.com

Hi
I cannot post photos but have sent you a mail
Br
Job

email (option): Jonnyob1atgooglemail.com

Lots of info on lacing and truing in the Technical Section under Wheel Building.

yes i saw them but i cant underst some dimensions

email (option): lagonas21@windowslive.com

You don't need a JIG to build a wire spoked wheel.

Mark

email (option): pes.sales@btconnect.com

I tried but the spokes out of the hub
Or i dont place them correctly

email (option): lagonas21@windowslive.com

The only jig system that I'm aware of is the type suggested by "Radco" in his "Vintage Motorcyclist's Workshop" book.

The idea behind that though was to make a wooden jig around the old wheel so that offset could be copied and centrality was unavoidable (assuming the original was good).

maybe i dont know,i have problem with the hub i cant center it,maybe i put the spokes wrong,i dont know

email (option): lagonas21@windowslive.com

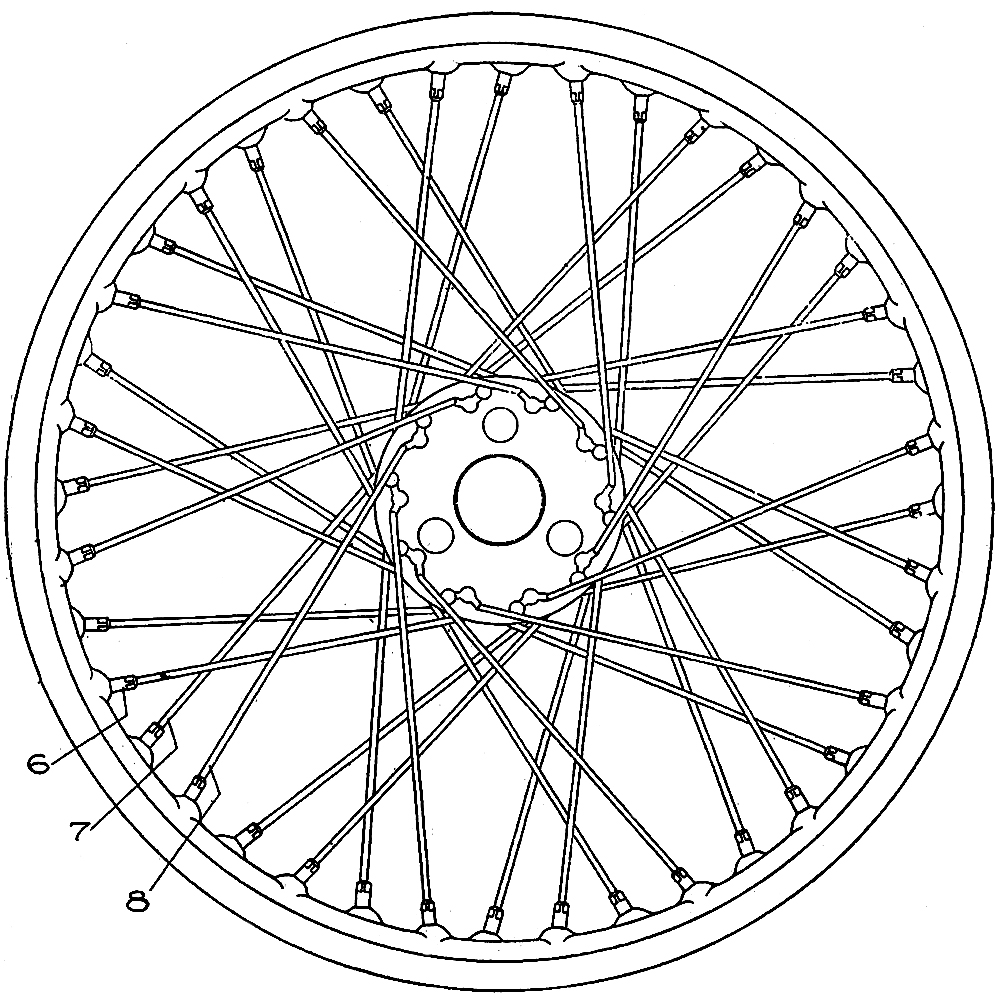

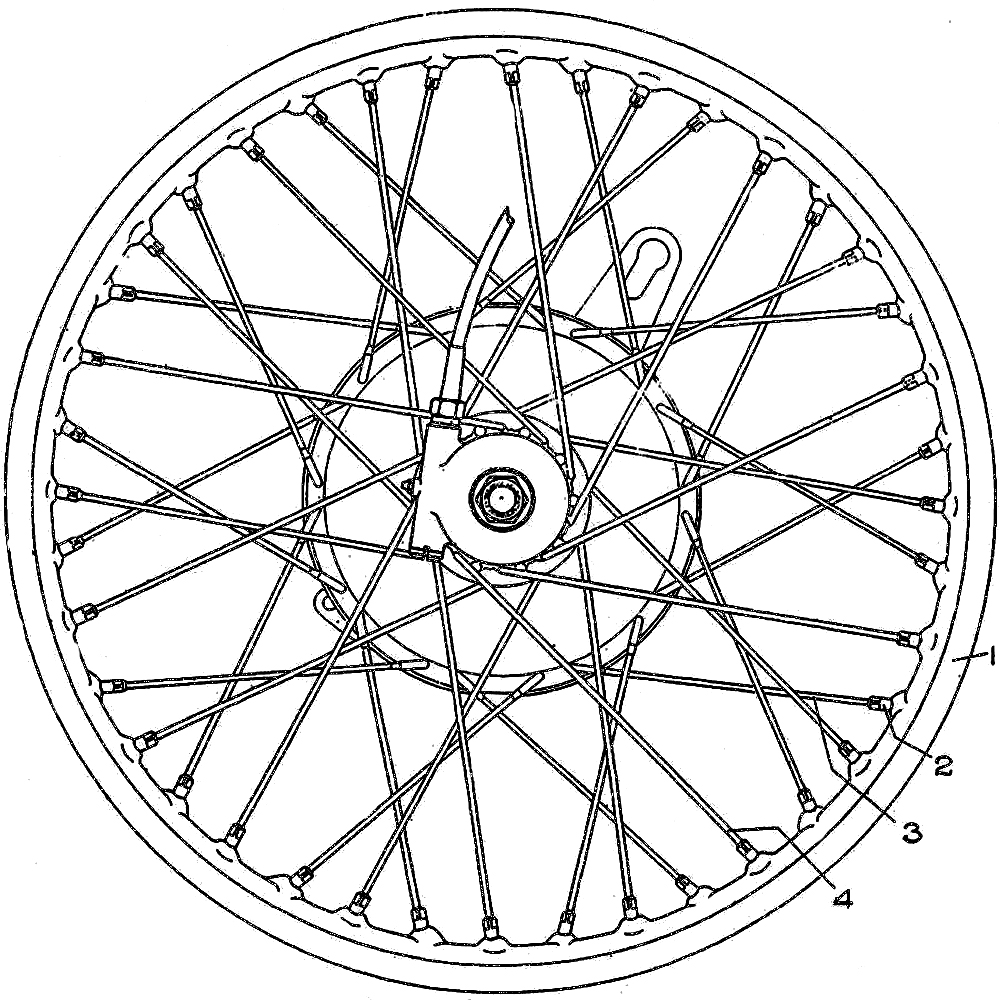

This might help.





I think the spoke lengths are in a parts book.

Mark

email (option): pes.sales@btconnect.com

what about those numbers 6,7,8?

email (option): lagonas21@windowslive.com

6= Nipple x40
7= Spoke right hand x20
8= Spoke left hand x20

Ron
