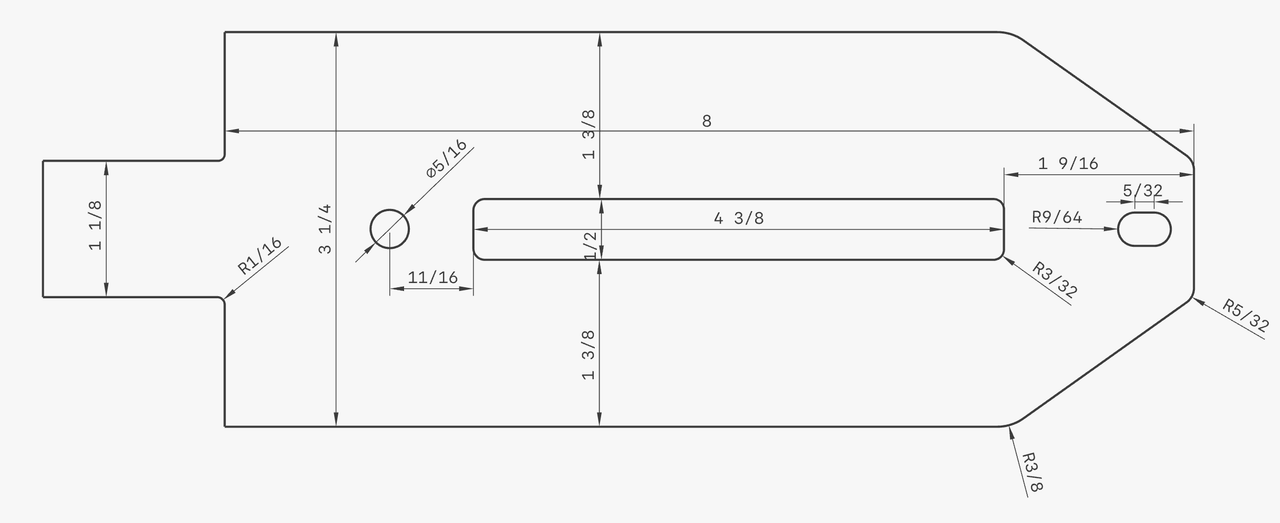

I've now generated a CAD file of the G3L battery strap and am going to laser cut it soon. I would appreciate any comments regarding the accuracy of the dimensions in the drawing linked below, particularly the various radii on the inside and outside corners.

Anyone who would like a copy of the CAD file please let me know.

I'd like a copy please Andrew.

Ron

email (option): ronpier@talk21.com

Will do, but I’ll hold off until I am sure I’m on the final revision

After contributions from several different sources, the final amalgamated strap design is below.
