Happy new year to all! Anybody knows is the valve at the bottom of the M-model pump really needed? As I understand it is meant to hold oil in return line when engine is stopped. Does it also reduce the suction?
It is upgrade from 1939. I'm restoring an engine from '38 and need to decise should I use the pump with the valve or one without? I have them both on my table. Only differences of two designs are the steel bottom plate of the pump and the crankcase gauze filter.
I'm guessing BSA wouldn't have fitted something if they didn't think it was needed...Exactly why they thought they needed it is another question...
In BSA worksheets it's purpose is essentially described as an 'anti drain valve'...
However, neither the new cast iron pumps currently available as a replacement for the original or the Dutch 'ABSAF' high capacity oil pumps for the Gold Star have this feature...
Below is an extract from the 'Air publications' manual for the M20 which is taken from the BSA factory literature....
['there are two ball valves incorporated in the lubrication system to prevent the transfer of oil from the tank to the crank case...']...Ian
Thanks Ian. Interesting, seems that oil pump valve didn't come together with the new engine but a year later. 1939 parts book shows old bottom plate 65-2613. New plate 65-2625 is given in 1940 parts book.

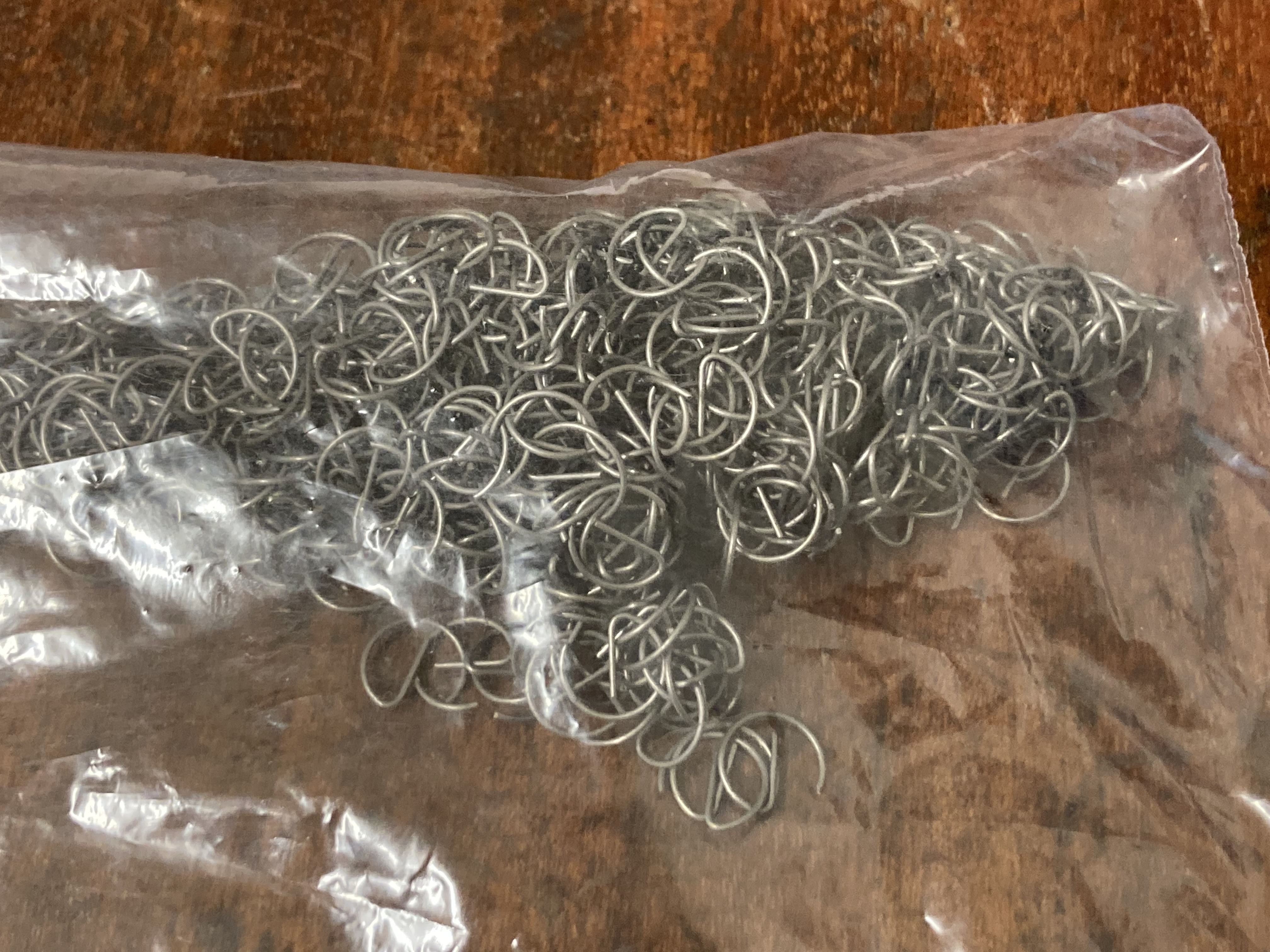

Does anyone have a part number for the little wire clip that stops the ball escaping? I'd like to source a few of these before committing to having a thousand made.
I have a 1937 m20 3000 orig. miles totally original 1000 serial # came with check valve at base of pump. I helped work on very early 1937 300+ serial # had 2 bolt sump plate had no check valve at base of pump hollow tube. I also looked at a late 1937 engine 2000+ serial # had a slightly different pump base check valve tube approx. 1/8"to 1/4'different location from mid year pump if I remember correctly but that was 20 yrs. ago when I restored my 1937.
