New to me 42/43 WM20

Hello , My name is Wade. I am not new to British bikes by any means. But I am new to one of this vintage. Twice I was loaned one to ride , Once from England to Germany with my wife on pillion ( a trooper) and once around England again with the wife but the weather was better that time surprisingly. So I am familiar with the wonderful experience of riding one... Add a reverence for all things WW2 and there was no way I could turn this down ...

Picked this up last week ... Missing some expensive stuff like the speedo set up and rear seat set up.... Will need a lot of nuts and bolt and things like that .

Let me know what else you see missing or wrong... And of course if you have any spares you wouldnt mind selling for the cause....

%%bbCodeItem_1%%

%%bbCodeItem_2%%

%%bbCodeItem_3%%

%%bbCodeItem_4%%

%%bbCodeItem_5%%

%%bbCodeItem_6%%

%%bbCodeItem_7%%

%%bbCodeItem_8%%

%%bbCodeItem_9%%

%%bbCodeItem_10%%

%%bbCodeItem_11%%

%%bbCodeItem_12%%

%%bbCodeItem_13%%

%%bbCodeItem_14%%

%%bbCodeItem_15%%

%%bbCodeItem_16%%

%%bbCodeItem_17%%

%%bbCodeItem_18%%

%%bbCodeItem_19%%

%%bbCodeItem_20%%

%%bbCodeItem_21%%

%%bbCodeItem_22%%

%%bbCodeItem_23%%

%%bbCodeItem_24%%

%%bbCodeItem_25%%

%%bbCodeItem_26%%

%%bbCodeItem_27%%

%%bbCodeItem_28%%

%%bbCodeItem_29%%

%%bbCodeItem_30%%

%%bbCodeItem_31%%

%%bbCodeItem_32%%

%%bbCodeItem_33%%

%%bbCodeItem_34%%

%%bbCodeItem_35%%

%%bbCodeItem_36%%

%%bbCodeItem_37%%

%%bbCodeItem_38%%

%%bbCodeItem_39%%

%%bbCodeItem_40%%

%%bbCodeItem_41%%

%%bbCodeItem_42%%

%%bbCodeItem_43%%

%%bbCodeItem_44%%

%%bbCodeItem_45%%

%%bbCodeItem_46%%

%%bbCodeItem_47%%

%%bbCodeItem_48%%

%%bbCodeItem_49%%

%%bbCodeItem_50%%

%%bbCodeItem_51%%

%%bbCodeItem_52%%

%%bbCodeItem_53%%

%%bbCodeItem_54%%

%%bbCodeItem_55%%

%%bbCodeItem_56%%

%%bbCodeItem_57%%


Re: New to me 42/43 WM20

Are photos showing up for anyone?

Maybe I tried to post too many.

Here is an overall shot ...

%%bbCodeItem_1%%

Re: New to me 42/43 WM20

You need to use a site like this, https://imgbb.com/ or email the picture to me if you want and I'll post it. Ron

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

G'day Wade and welcome. Not sure why your Postimage photos are not displaying? Clicking on a link takes me to the Postimage sign up page.

Re: New to me 42/43 WM20

Hi Wade
why not put the pictures upon your website and link to that? You could keep us up to date on your progress with the bike then as well.

cheers
Pete

Re: New to me 42/43 WM20

The best thing is to start here on the forum with the frame and engine number...That will determine the year of manufacture and contract that the bike was built under...From there a specification can be determined and you can then deduce what you have and haven't got...

One clear photo of each side of the bike will serve for an initial assessment of its condition etc...Ian

email (option): ian@wright52.plus.com

Re: New to me 42/43 WM20

https://postimg.cc/G4H308vT

A link ... Hope this works

Or this maybe

IMG-7401

Re: New to me 42/43 WM20

Website hotlink seems to work so we can try this again...

IMG-7367




IMG-7368




IMG-7370




IMG-7371




IMG-7372




IMG-7373




IMG-7374




IMG-7375

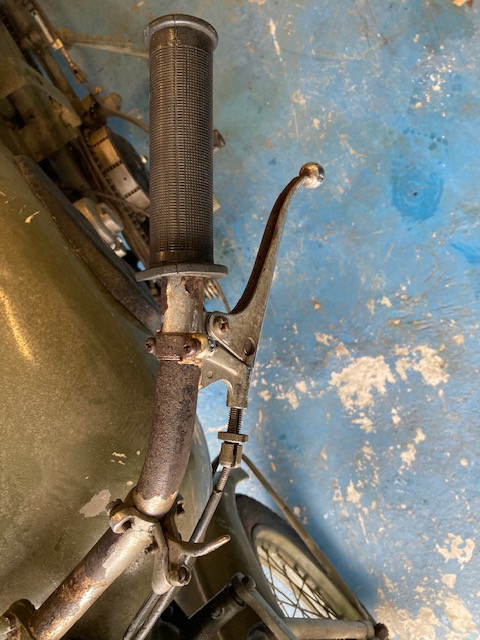

IMG-7376




IMG-7377

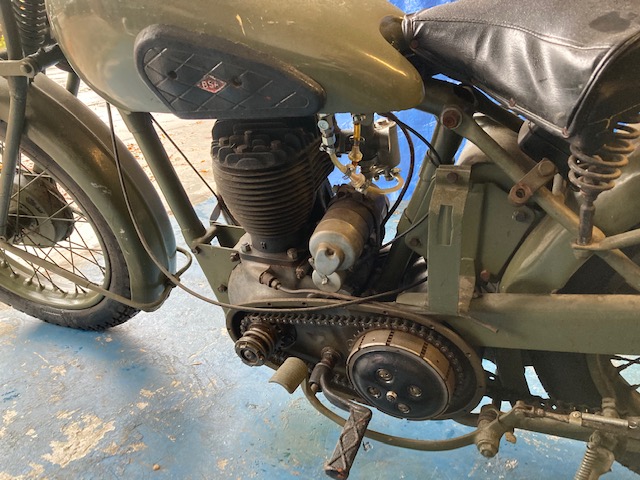

IMG-7379

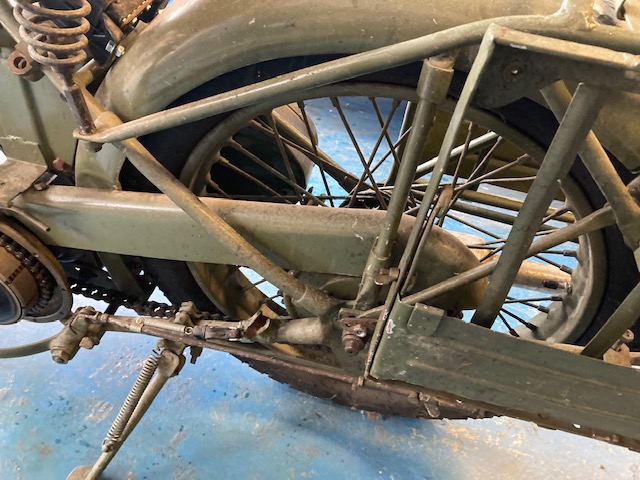

IMG-7381

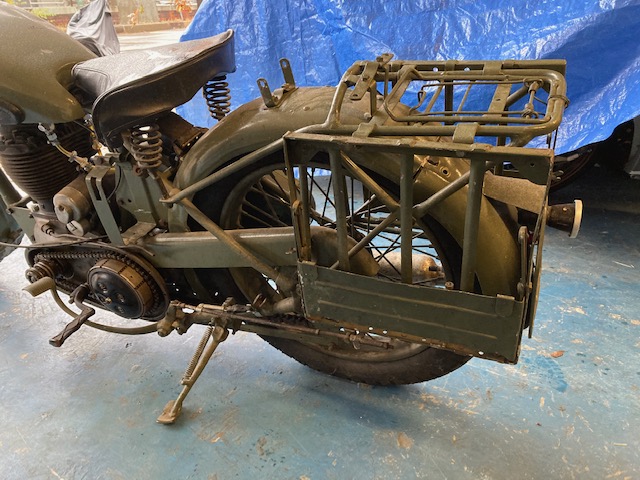

IMG-7382




IMG-7383




IMG-7385

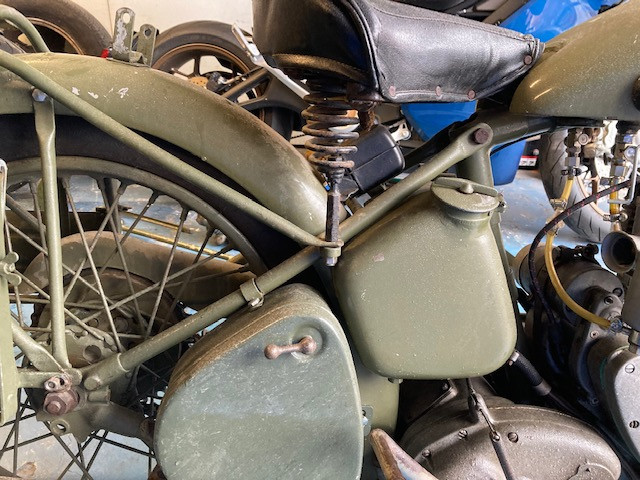

IMG-7386

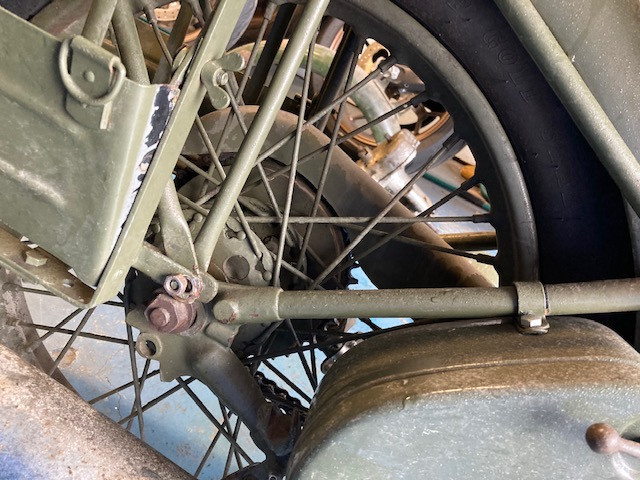

IMG-7388

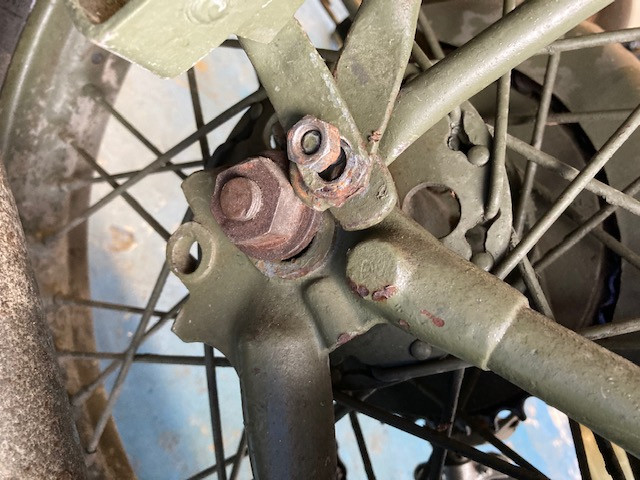

IMG-7389




IMG-7390




IMG-7393

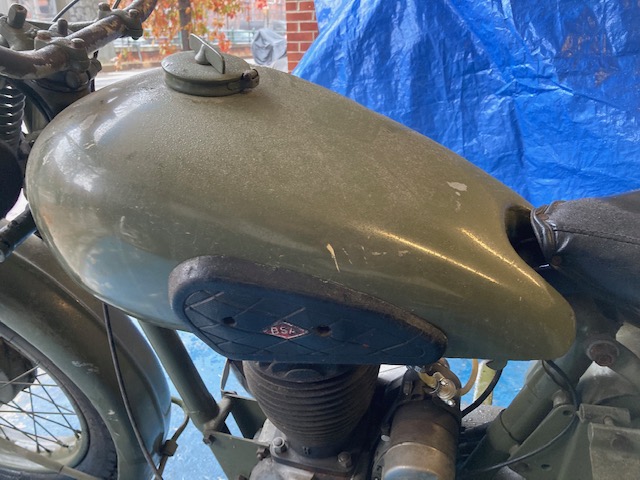

IMG-7394




IMG-7395




IMG-7396




IMG-7397




IMG-7398




IMG-7401




IMG-7402




IMG-7403




IMG-7413

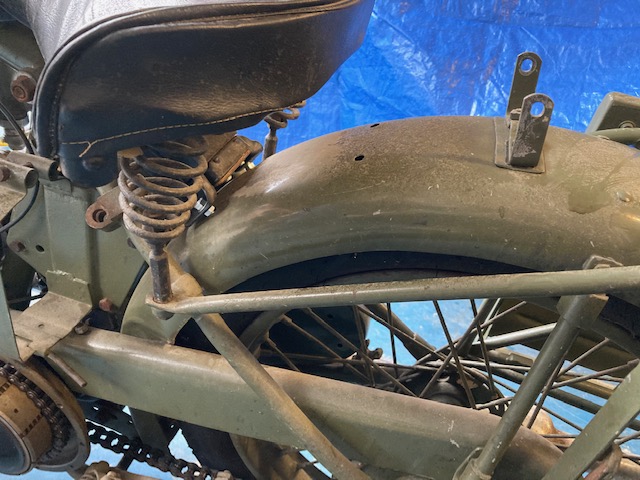

IMG-7414




IMG-7415




IMG-7416




IMG-7417




IMG-7418




IMG-7421




IMG-8021

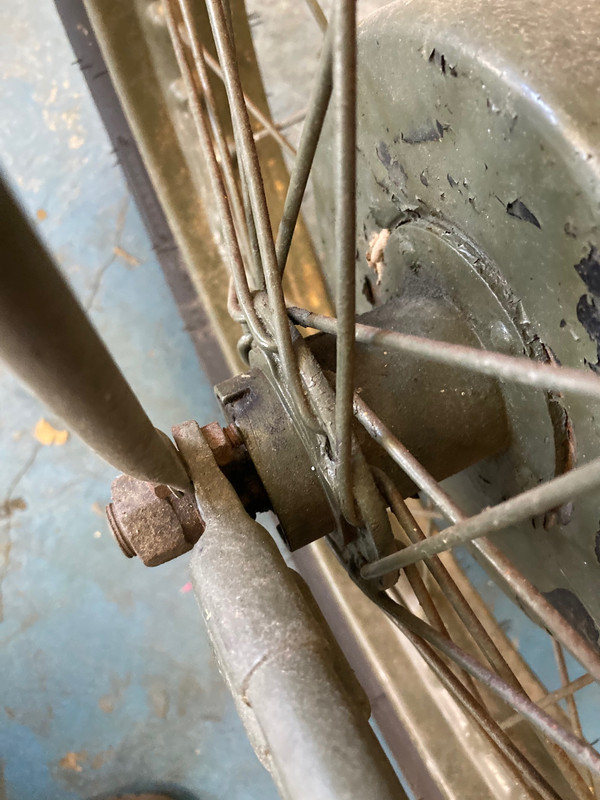

IMG-8021-1




IMG-8022




IMG-8022-1




IMG-8023




IMG-8023-1




IMG-8025

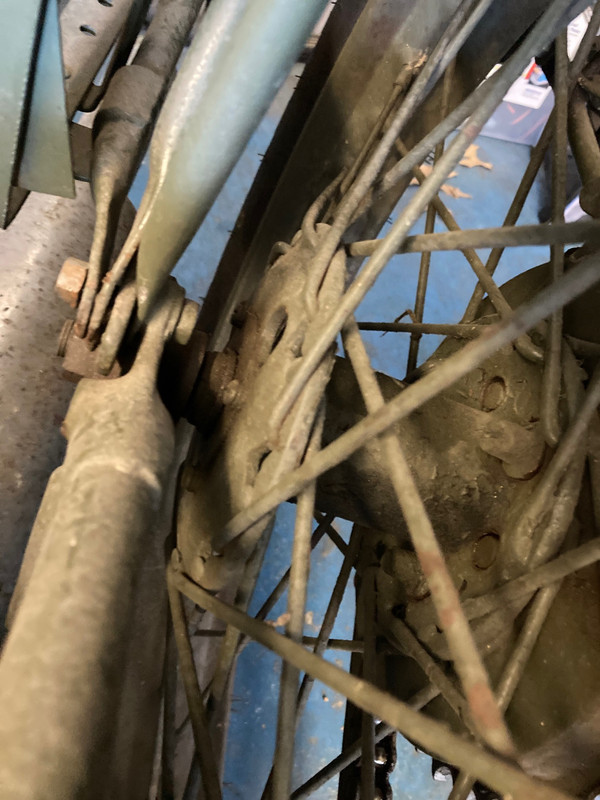

IMG-8025-1




IMG-8026

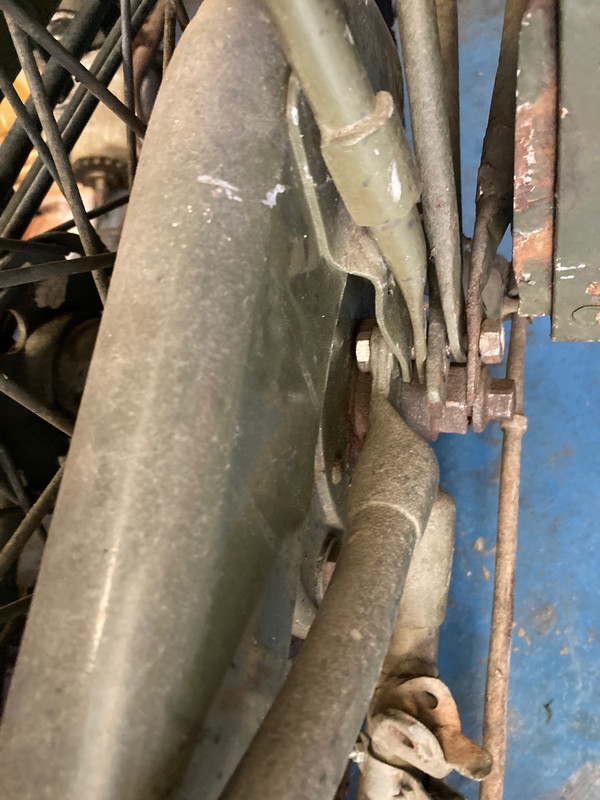

IMG-8026-1




IMG-8027




IMG-8027-1




IMG-8028




IMG-8028-1




IMG-8029




IMG-8029-1




IMG-8030

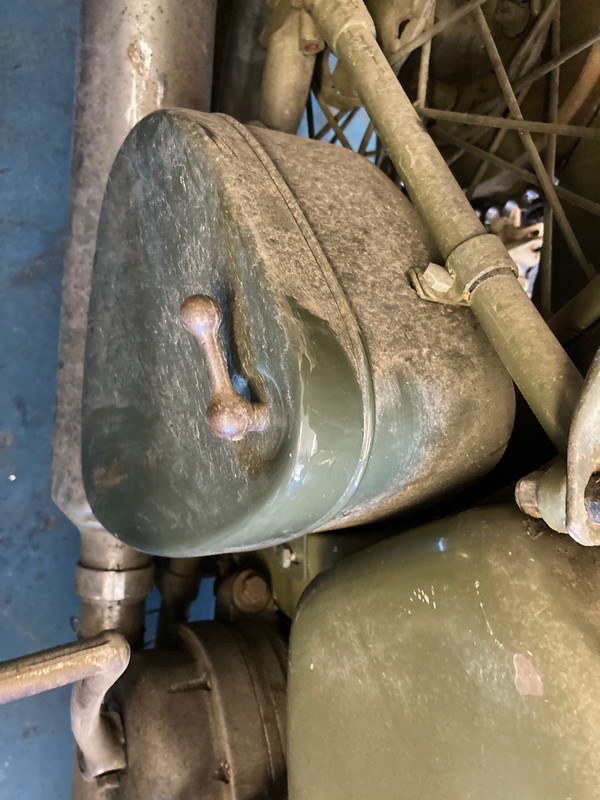

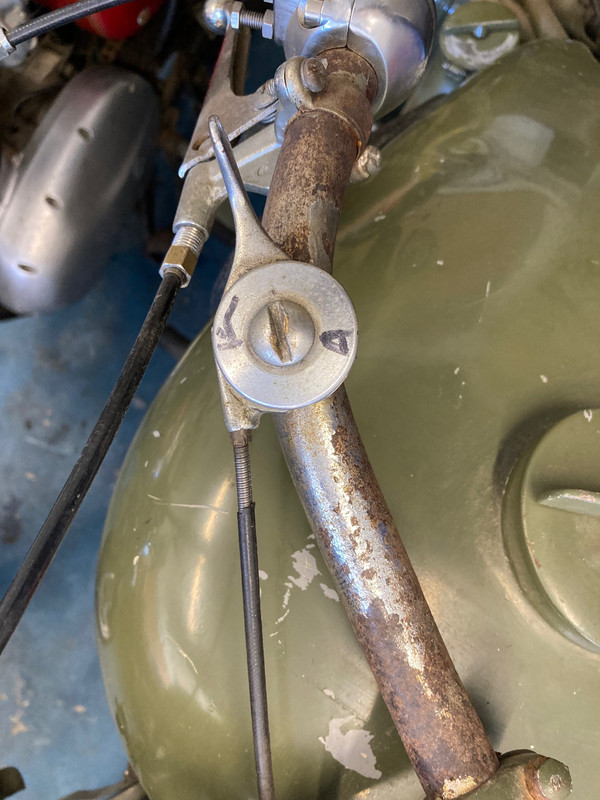

IMG-8030-1

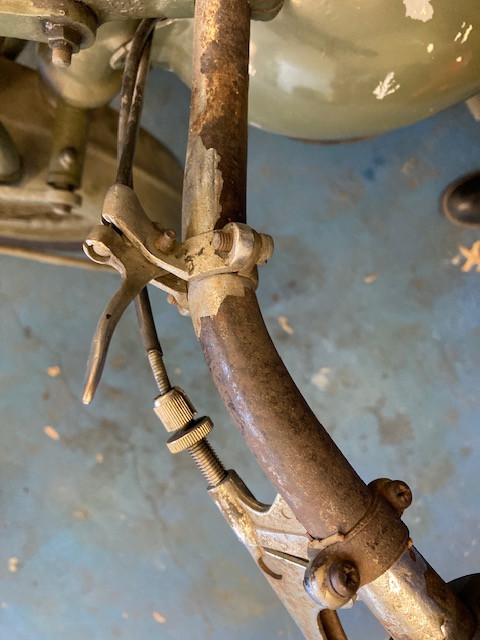

IMG-8031




IMG-8031-1




IMG-8032

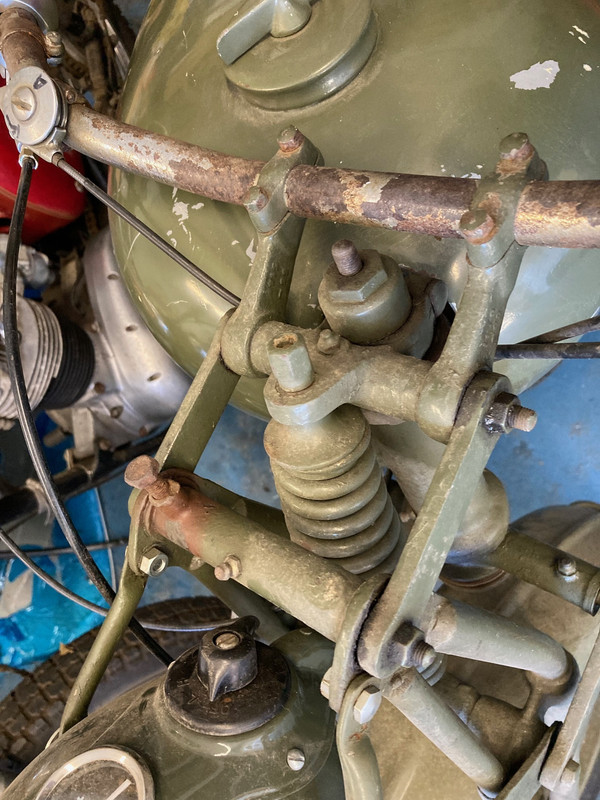

IMG-8032-1





Re: New to me 42/43 WM20

Sorry for the duplicate photos in there ... Ill do better the next time.... Im sure there are little things missing that I dont know about... I downloaded a parts book but its not as detailed as the A65 ones... Or as easy to read... Might even be the wrong year ....

The id numbers are in my photos. Not sure if this is a match number bike or not... I was told by PO that it was not but it seems that the numbers are from the same year so maybe it is.

The Contract number seems to be C 5121777 but thats all I know... I wonder where it was shipped to ? Was it in the thick of things or was is shipped to Canada or some where else initially ...

Re: New to me 42/43 WM20

Hi,

Very nice M20!

The following parts are missing or not original to a WW2 M20:
- headlight glass, should be flat of the Difusa type
- speedo drive
- speedo
- speedo mounting bracket
- speedo cable
- your fork needs arepaire in order to fit a speedo bracket
- your top fork links are installed the wrong way around, the left one is fitted on the right and right one fitted to the left
- ammeter is post war
- civilian lucas headlight switch is fitted
- bakelite damper knob
- front bolts to fasten the fueltank
- horn
- horn push button
- dynamo end cover (is a post war one)
- battery carrier is post war
- fuel line
- rear standard, the one you have looks like a home made one
- various nuts and bolts

I am sure that some other experts will see more things that are missing. I am more in to early WM20's.

This is a very good basis for a restoration.

Good luck with it!

Regards,
Bastiaan

email (option): wdmotorcycles@gmail.com

Re: New to me 42/43 WM20

I notice it has a Triumph clutch fitted (Not a bad thing)
And a couple of items for the critique list.
regulator looks like a cheap Asian copy of a post war MCR2 (should be the shorter MCR1)
The dynamo itself might be a post war 60 Watt item? (Difficult to tell)
Brake and clutch levers are post war and the adv/ret lever is missing. (Looks like the cable is connected to the choke lever).

Ron

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Ron Pier
I notice it has a Triumph clutch fitted (Not a bad thing)
And a couple of items for the critique list.
regulator looks like a cheap Asian copy of a post war MCR2 (should be the shorter MCR1)
The dynamo itself might be a post war 60 Watt item? (Difficult to tell)
Brake and clutch levers are post war and the adv/ret lever is missing. (Looks like the cable is connected to the choke lever).

Ron
Thanks Ron .... Thats what I needed . Will the Dynamo be an issue ? I will restore to original as much as possible but I may not worry about that right away if it works.... If I buy the things I have sourced already then , I will have spent more on a non running bike then if I had bought a restored one.... It is what it is but goal (plan ) will need to be to make it mechanically sound and the appearance of a WW2 machine at 20 ft away ... :o
That said . the more I learn the more I will want to correct the wrongs as finances allow.
Thank you very very much for taking the time to look over my photos and offer advice !!!

Re: New to me 42/43 WM20

There's no issue with the dynamo as long as it's working. More of an issue will be the regulator (If it's from India)....They are crap and only usually work for a short time.

Get it running and maintained and painted in service colour and sort out anything that displeases you over time. Ron

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

The carburetter has a Triumph choke set up with the metal bar and it should have two copper pipes from each tap going into one pipe to the carburetter. Hard to tell from a photo but looks like the carburetter bowl may be on a 3 degree or 7 degree angle (Triumph). The BSA float bowl should be vertical with no angle. On the top of the carburetter on the right flange where it bolts on should be 276C/1B I suspect this one may be a 276FF/1AT or similar? At least the bike is pretty complete so that's a great start.

email (option): ukcarbsathotmail.com

Re: New to me 42/43 WM20

The shooting stick field stand and retaining clip are also missing but as said above plenty to restore. Get the bike running I am sure the missing parts will turn up during the process.

email (option): keithchandler@clistandchandler.co.uk

Re: New to me 42/43 WM20

The rear and field stand are there in the pictures, with some extra parts.

Contract number is S1048, and the census number on the tank is indeed C5121777. I don't have more info, ans the bike id not in the postwar Key Cards, that only means it was sold by the army before 1949 or so.

So, nice find!

Cheers,

Lex

email (option): welbike@welb**e.net

Re: New to me 42/43 WM20

Thanks Everyone !!! Yeah I think the only thing I am missing for the field stand is a nut at the mount and the retaining part for when its in the up position... Need to find out what that looks like and start searching.... Ill look at the carb to see what number that is... If I have the Triumph one will it still run properly ? Would it also be from a War bike?

Re: New to me 42/43 WM20

Basically a 276 carb is a 276 carb as long as it's configured correctly for your bike. Although an angled float chamber might give you problems.

The field stand spring clip is shown highlighted in this illustration....And Keith above was offering one or two for sale the other day. Ron

Scan-141116-0002

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Oh thats great Ron. What did that illustration come from ? The parts book I downloaded does not have drawings like that... I will reach out to Keith .

Re: New to me 42/43 WM20

It's the instructions for retro fitting the pannier and pillion kit. Here's the other side. Ron
Scan-141116-0001

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

The carburetter will be fine if the bowl is not on an angle. Stand back from the bike and look and see that the bowl is vertical. If it is not vertical you will have small problems on going around bends as it will starve slightly on one type of bend and be a bit rich on the opposite bends. Had a guy ride a bike for 6 or so years with the wrong angled bowl and wondered why it hesitated on bends but went great on straight roads.

email (option): ukcarbsathotmail.com

Re: New to me 42/43 WM20

looking at the pictures this bowl looks OK

Re: New to me 42/43 WM20

Took some more detailed photos to see what else I need and to be sure I understand things

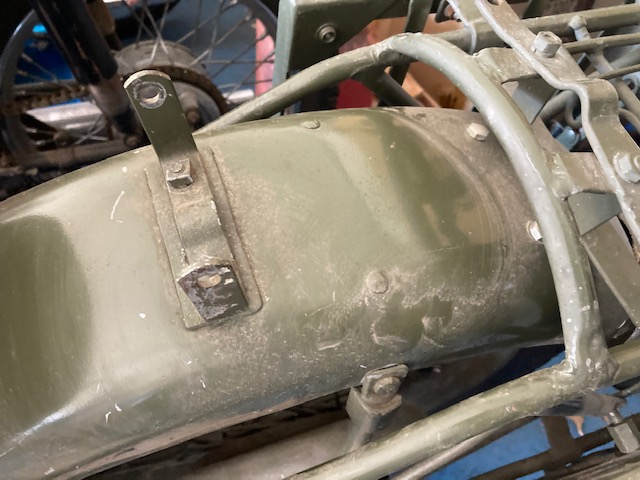

I need a rear seat but this bracket looks different then what I see on other WM20s ... Are there multiple versions ? Are my brackets wrong?

IMG-0014






IMG-0015






IMG-7382








Here is my tool box .... The paint of my tool box and headlight look shinier and different then the rest of the bike... Wonder if they are repops or just replaced?

And should this screw knob just come off when its undone or should there be a retainer of some kind?

IMG-0026






IMG-0027








Looks like I will need a wiring harness. No wiring going to the headlight or to the rear light at all.... Is there a good source or should I just make my own?

IMG-0061








IMG-0063




Re: New to me 42/43 WM20

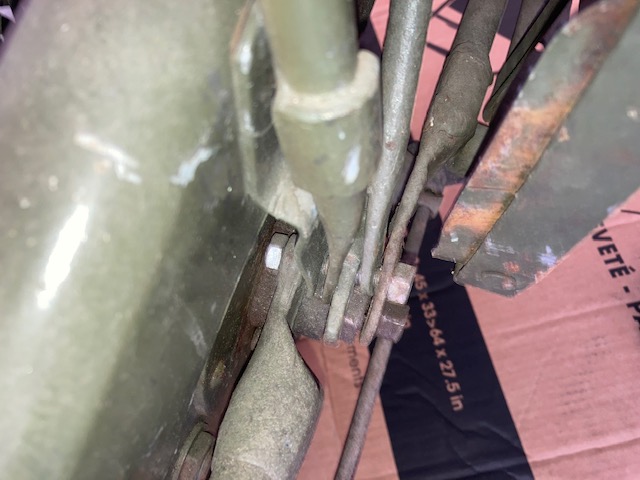

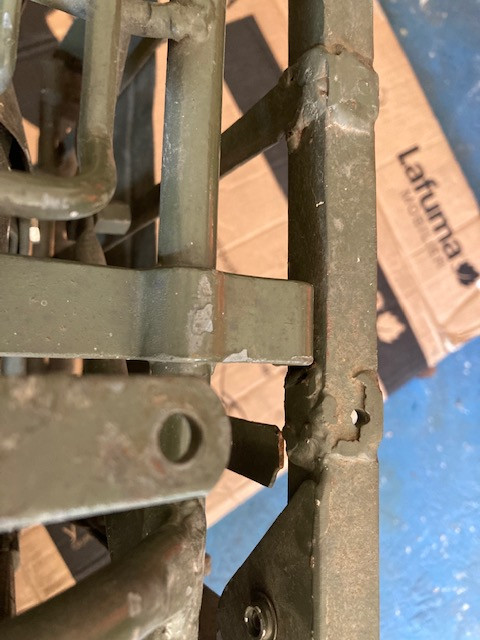

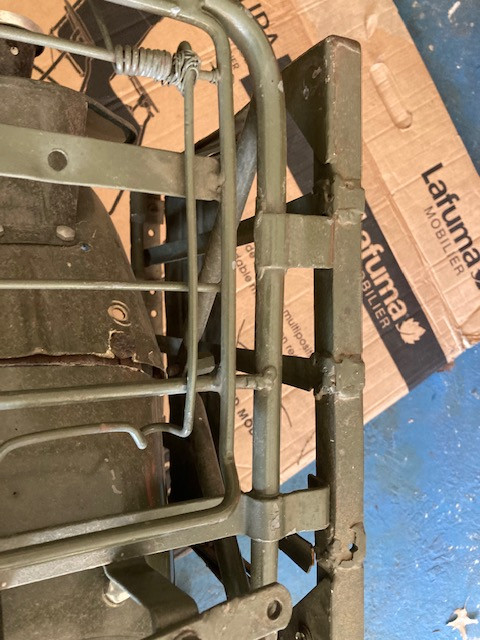

Along with the seat question above the rear of the bike offers a few mysteries ....

1) This is the way I picked up the bike ... The nuts are barely on ... Wonder how many fell off in transport.... Maybe they are mismatched thread ... Will investigate further as I delve into this project.

2) The loose hex spacers on the panniers are apparently correct but again just hanging there.... Cant believe they didnt fall off... I have two . how many should be there?

3) My pannier on one side has rusted away at the top . I guess that will be a welding repair.

4) I suppose my tail light is a repop since the wiring looks new.

IMG-0031








IMG-0032







IMG-0064







IMG-0034








IMG-0035








IMG-0036








IMG-0037








IMG-0039








IMG-0040








IMG-0044








IMG-0045








IMG-0046








IMG-0047

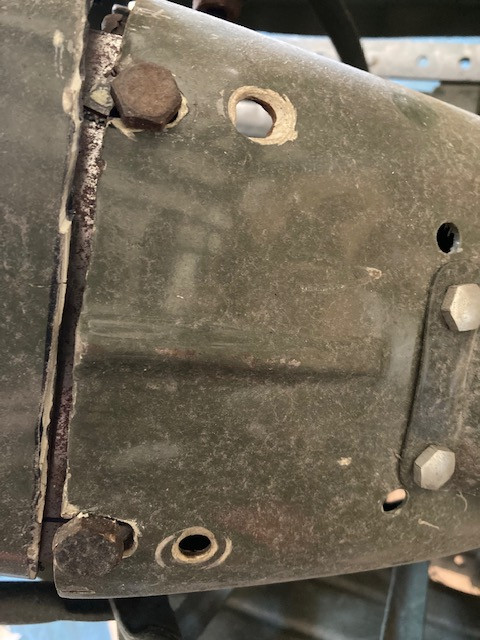

5) And what bodge has been done to my rear mudguard? I have another that came with the bike but not an extra "wing " or what ever the part is called that removes for wheel removal. Does that piece look butchered?

IMG-0065








IMG-0066

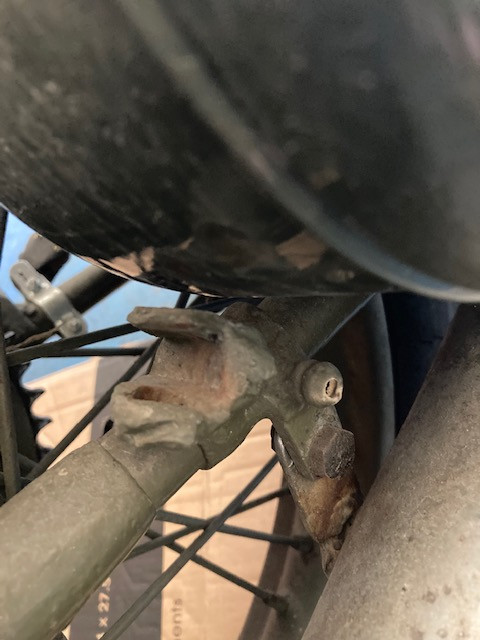

6) Lastly What is the nipple looking thing under the passenger footpeg?

IMG-0048









Re: New to me 42/43 WM20

Here is my Carb... It is neither one of the numbers mentioned above ... Anyone know what it is for... I should probably look for the right one ...

IMG-0020






IMG-0021






IMG-0023






IMG-0025






IMG-0029






IMG-0067






Ive order Canvas grips . Will they fit this throttle? The pictures of original ones looks the same without the chrome... Are they the same otherwise though?

IMG-0030



Re: New to me 42/43 WM20

Your carb is a 276, so providing the body is not too worn? can easily be reconfigured by ordering the correct new parts from Amal/ Surrey Cycles or Hitchcocks. The top is wrong as the choke/air is operated by cable at the handlebar. The (long) bottom nut is wrong and the float bowl is angled and should be straight. You can of course buy a complete new carb from one of the three firms mentioned (I much prefer the service from Hitchcocks).
Carb spec is 276C/1B

Your twistgrip looks like a modern Doherty (which I wouldn't want to use) and should be a period Amal. Ron

M20-056
Scan-20201130

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Santa (me) was good to me this christmas.

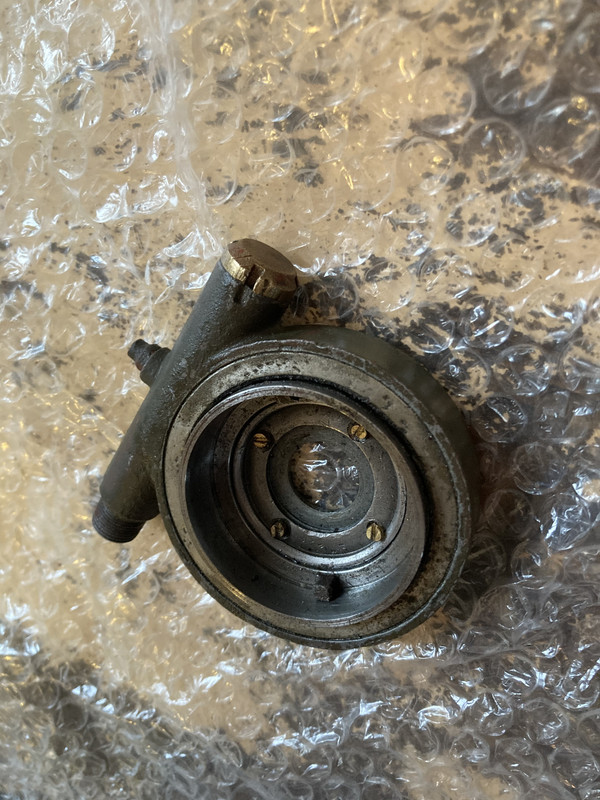

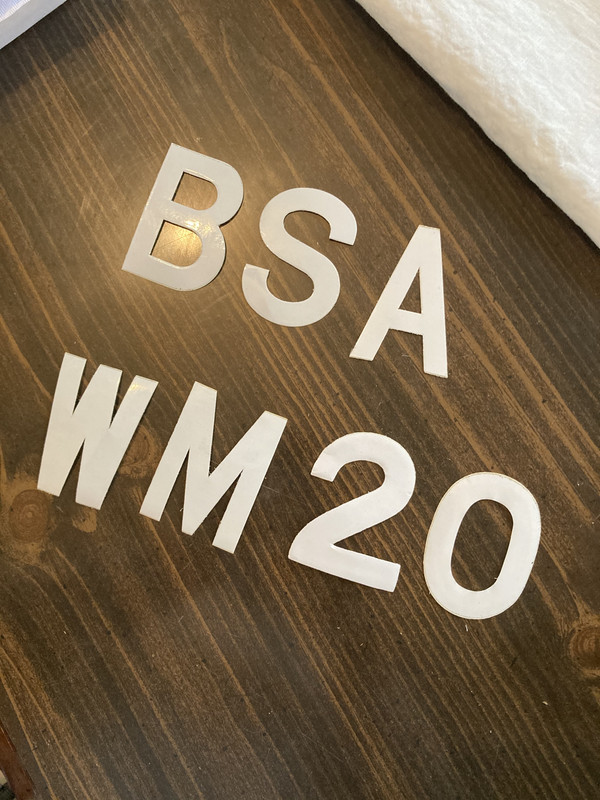

Fresh in from the UK... Some NOS and some not so NOS... Rebuilt speedo and drive.

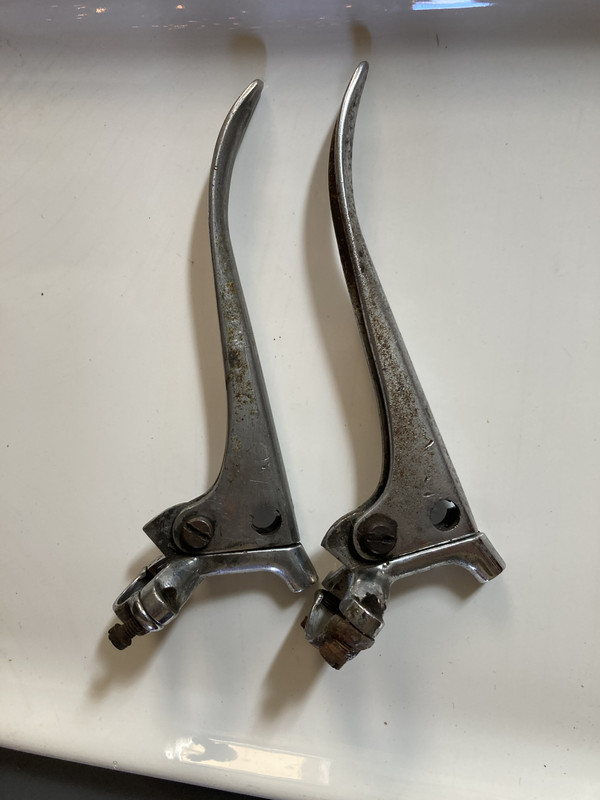

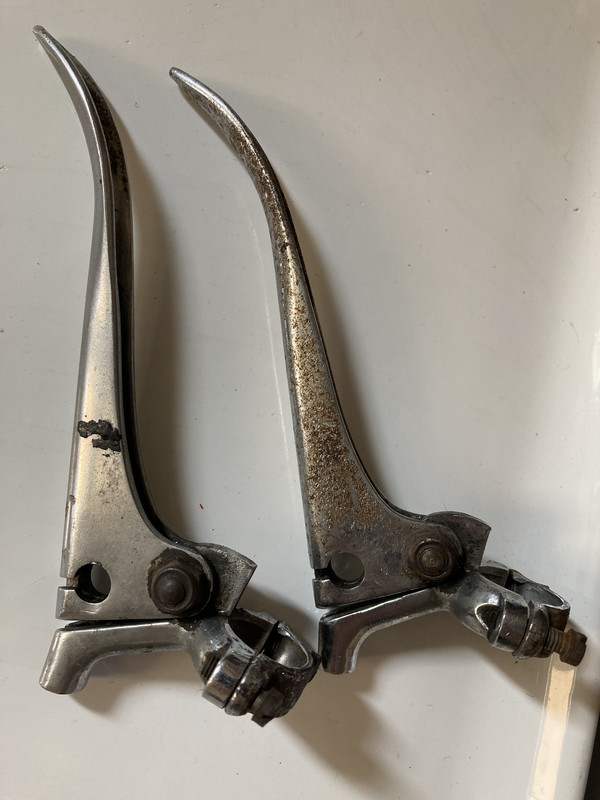

Of course the levers werent what I was expecting... Two clutch levers ... Now I have three since one came on the handle bars too.... The parts from the UK arrived in a week but the handle bars from WI took 2 months via the post office.... But I am happy with everything and the UK guy said he will find me a brake lever

IMG-0366






IMG-0368






IMG-0743






IMG-0744

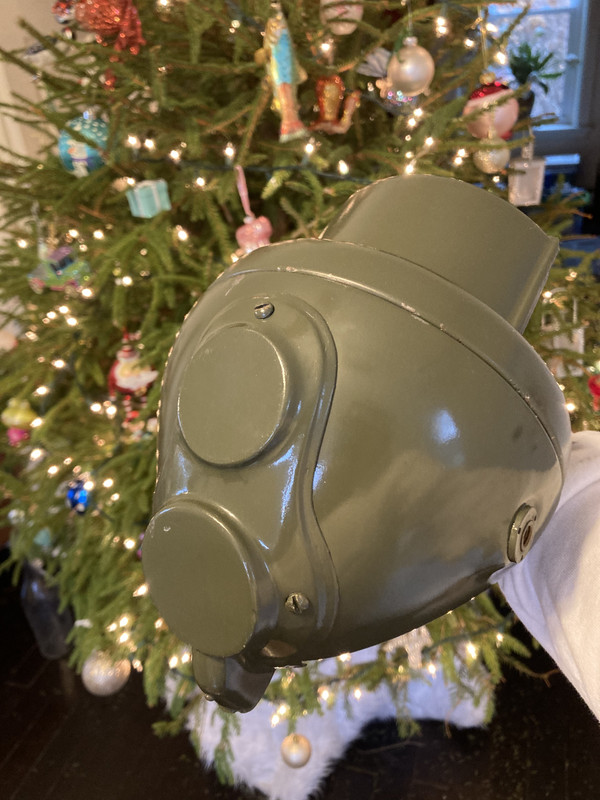

IMG-0745






IMG-0746






IMG-0747






IMG-0748






IMG-0749






IMG-0750

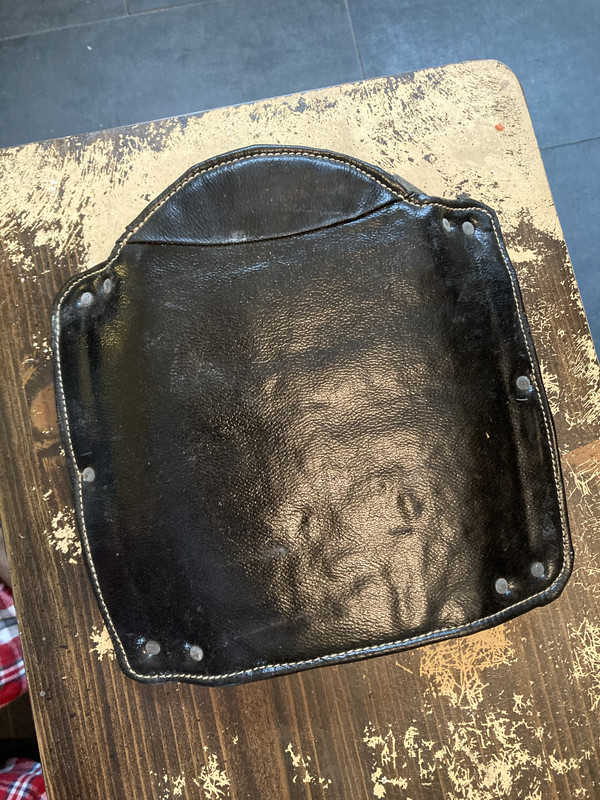

Nice seat cover for a seat that I dont have yet
IMG-0751

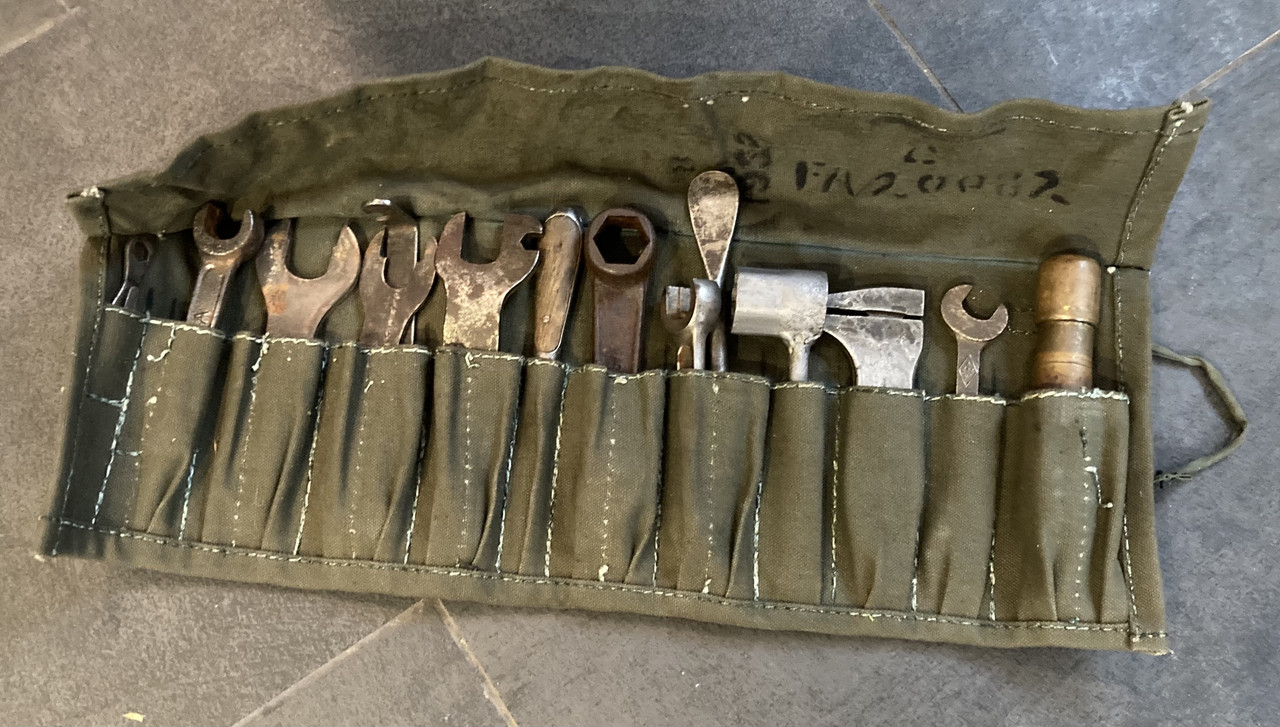

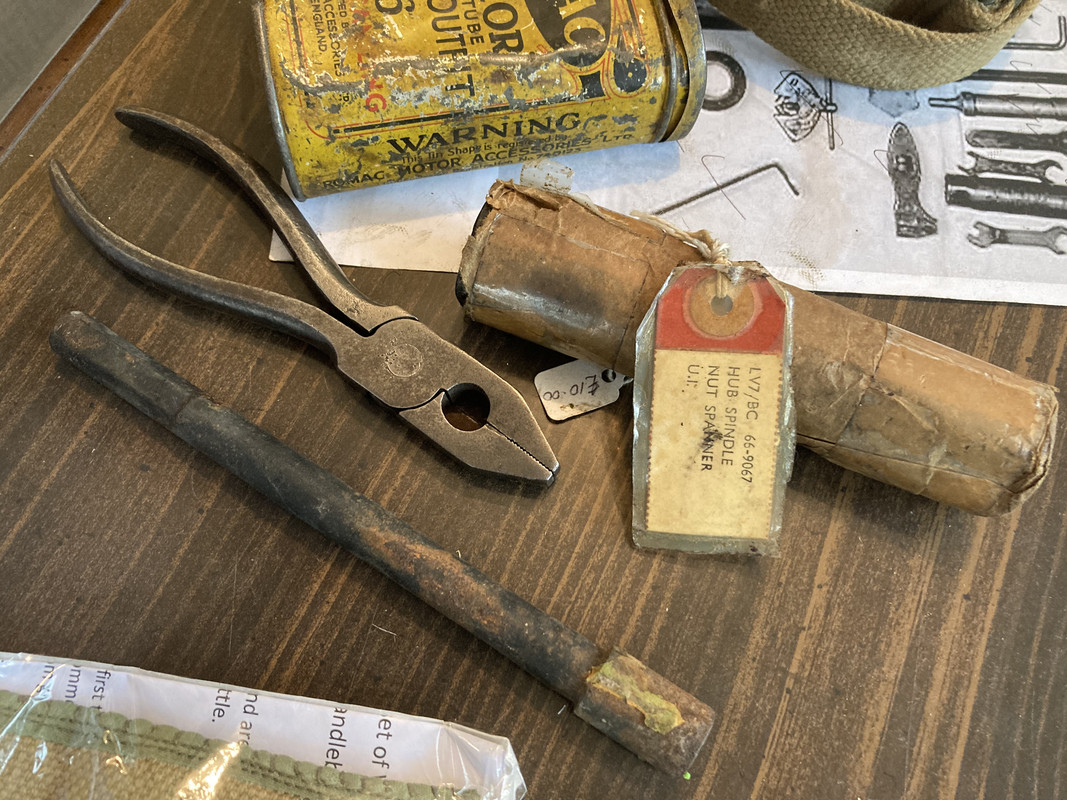

Got an extra tool roll for my B33 project as well .
IMG-0752






IMG-0753






IMG-0754






IMG-0755






IMG-0756






IMG-0758






IMG-0759






IMG-0760






IMG-0761






IMG-0762






IMG-0763






IMG-0764






IMG-0765






IMG-0766






IMG-0767






IMG-0768






IMG-0769






IMG-0770






IMG-0771



email (option): wadeschields@gmail.com

Re: New to me 42/43 WM20

Looks like you've been doing some shopping with Stuart.

Just so you know, the wartime clutch and brake levers are the same part number, so one is always upside down. Probably the same with the post war levers, but I don't have parts books for those.

Oh and pictures of groups of parts will save a logjam:confused: Ron

Scan-20200523

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Ron Pier
Looks like you've been doing some shopping with Stuart.

Just so you know, the wartime clutch and brake levers are the same part number, so one is always upside down. Probably the same with the post war levers, but I don't have parts books for those.

Oh and pictures of groups of parts will save a logjam:confused: Ron



Oh thats interesting !! I had planned on using the one upside down till I got the right one but maybe it is the right one... The ones I got are supposed to be post war but what the difference between war and post war ?

I will do fewer photos next time... Sorry I didnt edit them down... Hurrying before the wife kicks me off of the computer ..

Does my new headlight look right... Did they make repops of these or could this one be original?

email (option): wadeschields@gmail.com

Re: New to me 42/43 WM20

Some quite good repro WD headlamps are coming from India and usually in that strange green colour. The inside bulb holder and reflector will give it away.

The standardized Amal levers are solid, not the pressed steel type you have. Here are what they look like. Ron

DSCF1554

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Ok that carb stamped 276FG/1AT has a 7degree bowl as I suspected and was originally fitted to Triumph 1951-53 Thunderbird. I would buy a new 276C/1B as Ron suggested as the internal parts are probably all wrong such as needle jet, main jet and slide. As already pointed out bottom nut and choke are wrong. Bowl if stamped 1AT on the arm connecting to the carb body is also wrong.

email (option): ukcarbsathotmail.com

Re: New to me 42/43 WM20

The correct pillion saddle would be an "Acumen" Long or short version. You would be best to speak to Jan about these on wd.register@gmail.com
Which means the NOS cover you bought is wrong. Below is one of the long versions. The nipple that you asked about by the foot rest is for the front loop of the rear stand spring. Ron
DSCF1439

M20-220

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

PS I think you might do better to start a fresh thread with individual questions and pictures to save trolling through this thread which might put others off. Ron

email (option): ronpier@talk21.com

Re: New to me 42/43 WM20

Thanks Ron .. I was thinking the same thing.
