Hi all,

While reassembling the rear wheel of my G3L, I noticed the speedo drive has a lot of play. Am i missing a spacer or is it badly worn? Previous owner seems to have made a bracket to keep it in place. any ideas?

https://picasaweb.google.com/100803113419119628822/6280145791289870353?authkey=Gv1sRgCMC-gNvA09if3QE#6292703337016451874

Thanks,

Niek

email (option): niek.baeckeATtelenet.be

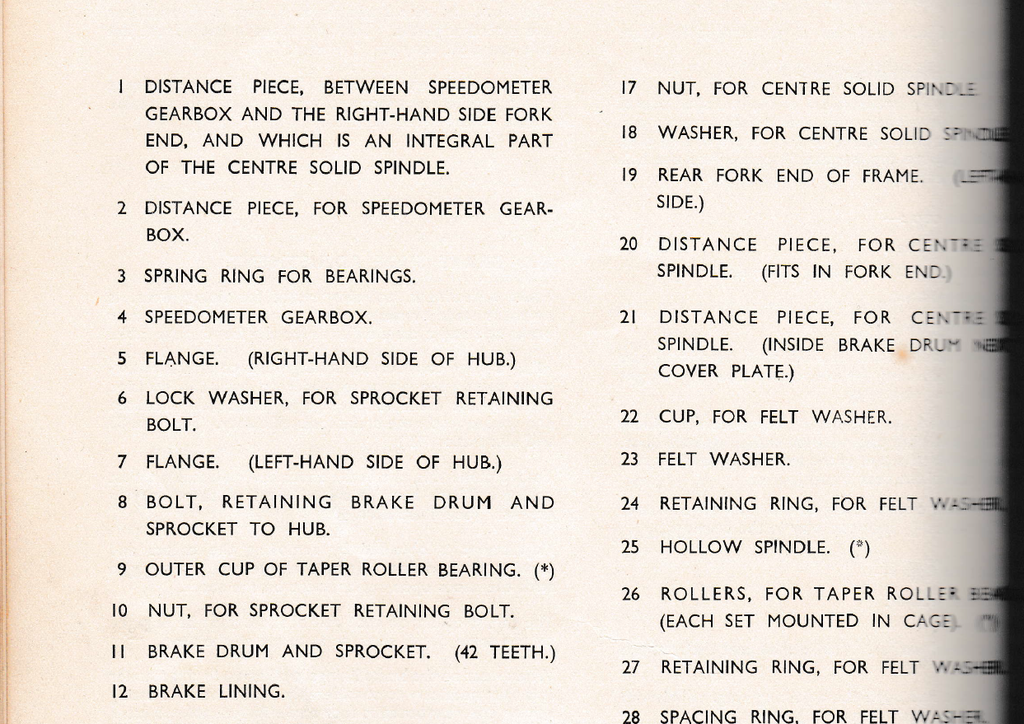

There ARE spacers! Best thing to do is check with the illustrated parts list. For example, there is 41-G3L-H26-S, the "Spacer, rear solid spindle ( for speedometer gear box)". But the drive should not have any significant lateral play on it and it should not need a bracket!

thanks Ferg, will check the parts list.

email (option): niek.baeckeATtelenet.be

Niek,

The speedo drive shouldn't have any play, the housing of the speedo drive is clamped between the inner and outer spacer when the wheel spindle is tightened.



FYI: will post your pillion seat tomorrow, didn't make it today.

Regards,
Peter

There is also a small spacer that goes inside the speedo box to stop the box being crushed when the wheel spindles are tightened up. Cheers John

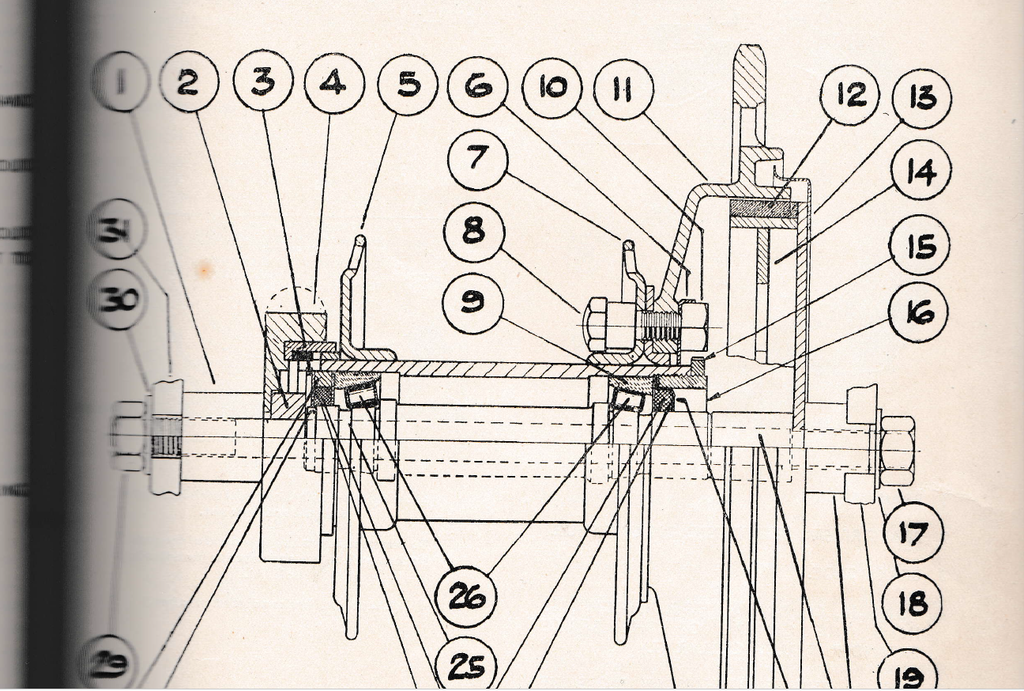

And forgot to mention: the outer spacer (1) is not a seperate spacer but part of the wheel spindle.





Regards,
Peter

Thanks all, problem is now solved.

Thanks Peter, i'll let you know when it arrives.

email (option): niek.baeckeATtelenet.be
