Agggh !
Whoever reassembled my 1945 16H hadn't a clue and I'm left picking up the pieces !

When I dismantled the bike I photographed every stage and now that I am reassembling it I'm pretty sure that a number of pieces are missing from the front and rear spindle units:

There appears to be an absence of a felt washer and a couple of steel washers on each spindle, am I correct?
And, if I am correct in this assumption, does anyone know where I can source these?

Can anyone provide me with an exploded diagram or some photos of how they should be assembled?
I've looked at all the data I have but unfortunately I don't seem to have the correct information available for my machine.

TIA (as always)
Ian

email (option): ian@ian-richards.com

Ian,

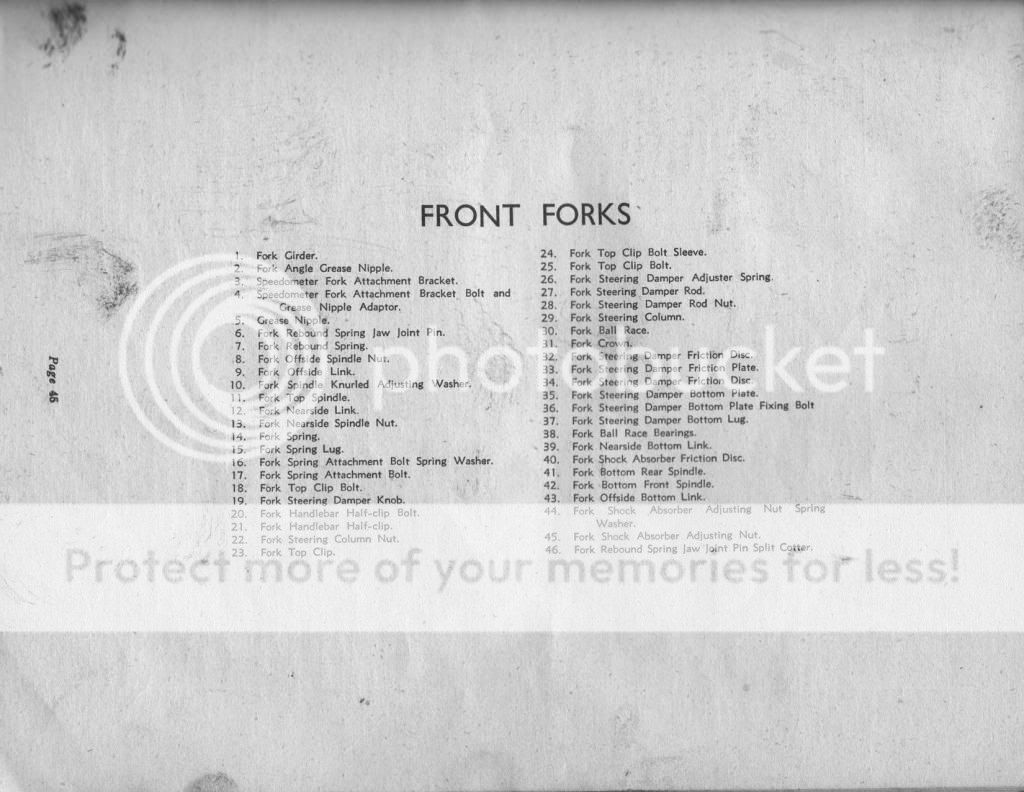

Here you are... (pages 44 & 45 of the M&I manual)





Kostas

Hi Kostas...I think Ian is talking about the wheels when he says 'front and rear spindle units'...at least that's how I read it...Ian (the other one)..

email (option): ian@wright52.plus.com

Hello Ian Richards
If you go to wdnorton.nl you can download the full workshop manual for your machine plus parts lists and riders manual.
Regards
Keith H

If you go here:

https://www.dropbox.com/l/9lTghyx5S0UGMzgwpIumSe?

You'll get to my Dropbox pages with a high quality scan of the manual, the next best thing to the Original! (or even better, as the pages have been cleaned up a bit, and in some way altered, so I'll know when someone tries to sell them, the info is as per original ofcourse)

Cheers,

Lex

email (option): welbike@sameagain.net

Excellent, many thanks guys.
I knew the answer would be there :-)
All I need to do is source those washers ... any suggestions?
TTFN
Ian

email (option): ian@ian-richards.com

I used Norton Commando felt seals, exactly the same size.

Item: FELT SEAL WASHER NME 6885
Part Number: 067614
Price: £0.54

Andover Norton (0)1264-359565
